产品概述 Product Overview
高性能PMI泡沫是100%闭孔的刚性聚甲基丙烯酰亚胺泡沫，不含里昂和卤素，具有同等密度中最高的比强度和比刚度，是制作轻质高强复合材料的理想芯材。 High-performance PMI foam is 100% closed-cell rigid polymethacrylimide foam, free of freon and halogen, with the highest specific strength and stiffness in the same density range, ideal core material for lightweight high-strength composites.
MT中温系列 MT Medium Temp
热变形温度184-191℃，适用于中温应用环境。 Heat deflection temperature 184-191℃, suitable for medium temperature applications.
HT高温系列 HT High Temp
热变形温度213-225℃，适用于高温结构应用。 Heat deflection temperature 213-225℃, suitable for high-temperature structural applications.
UT超高温系列 UT Ultra High Temp
热变形温度240-243℃，适用于极端高温环境。 Heat deflection temperature 240-243℃, suitable for extreme high-temperature environments.
功能性系列 Functional Series
包含通波、吸波、阻燃、抗冲等特殊功能类型。 Including wave-transparent, wave-absorbing, flame-retardant, impact-resistant special functional types.

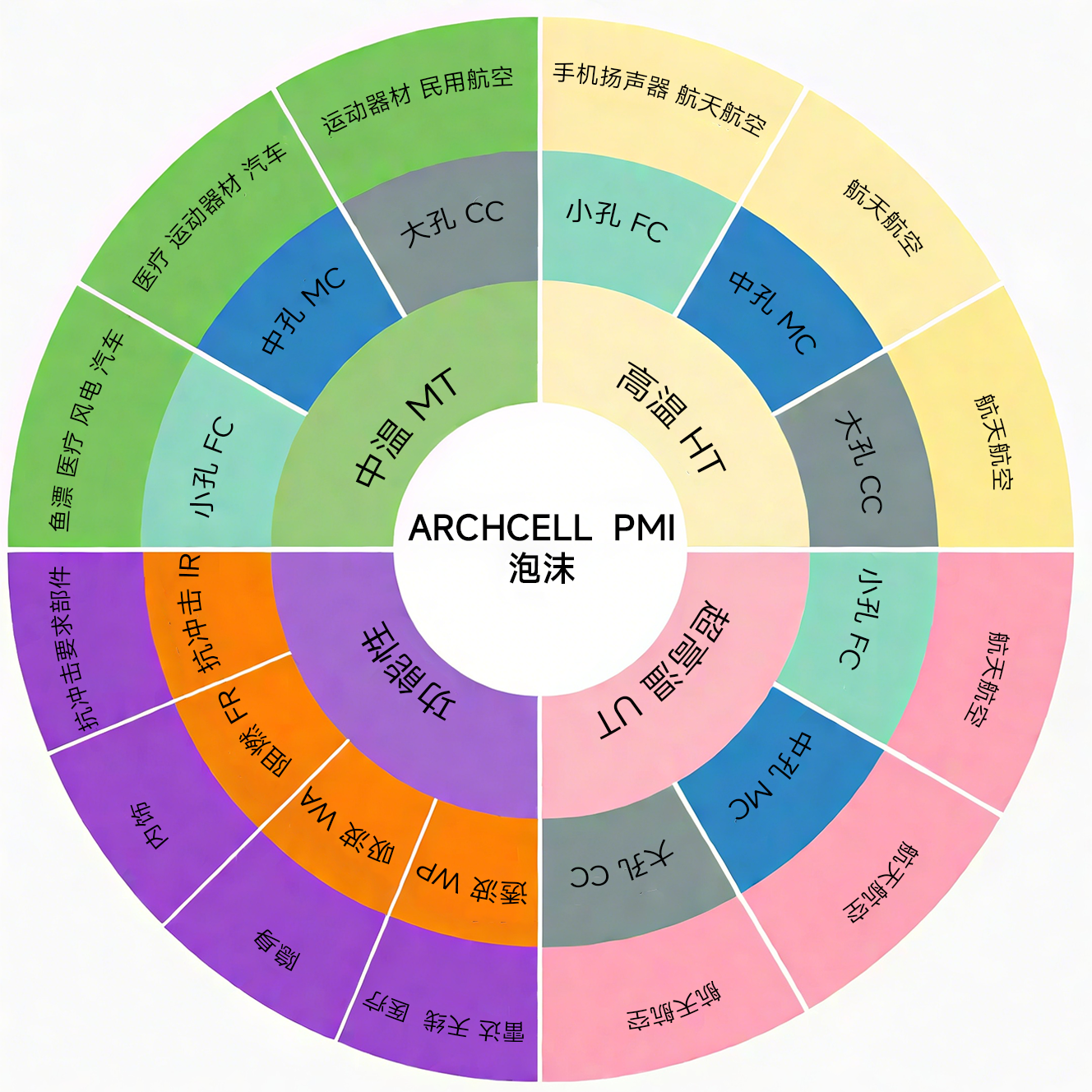

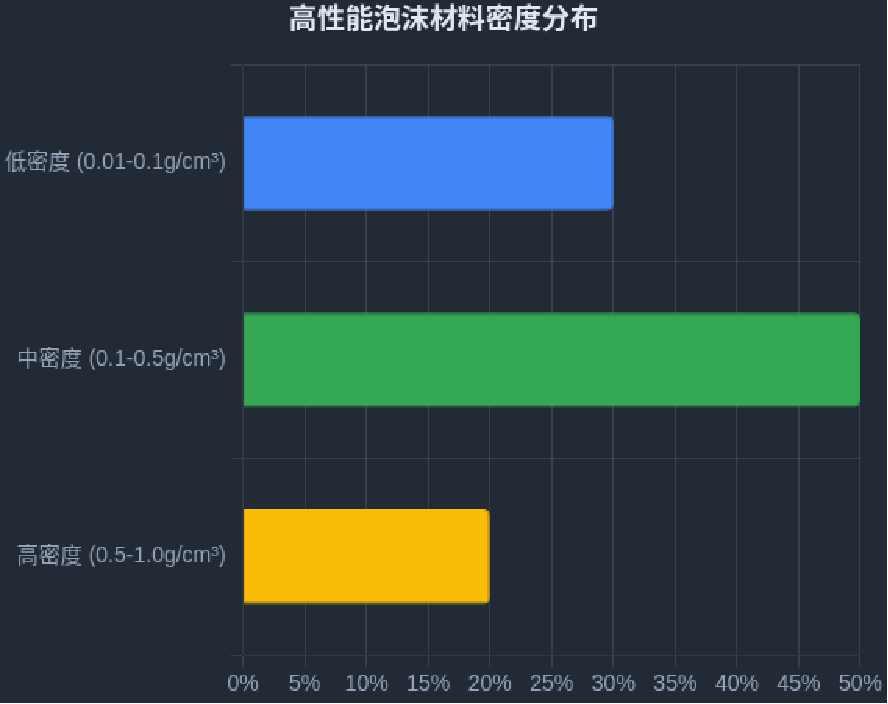

产品展示 Product Gallery
主要系列技术规格 Main Series Technical Specifications
MT中温系列 MT Medium Temperature Series
| 规格 Spec | 密度(kg/m³) Density(kg/m³) | 热变形温度(℃) HDT(℃) | 压缩强度(MPa) Compressive Strength(MPa) | 拉伸强度(MPa) Tensile Strength(MPa) | 弹性模量(MPa) Elastic Modulus(MPa) |
|---|---|---|---|---|---|
| 31MT-FC | 32 | 184 | 0.4 | 0.4 | 33 |
| 51MT-FC | 52 | 184 | 0.9 | 1.9 | 65 |
| 71MT-FC | 75 | 186 | 1.6 | 2.3 | 90 |
| 110MT-FC | 110 | 191 | 3.4 | 3.4 | 152 |
HT高温系列 HT High Temperature Series
| 规格 Spec | 密度(kg/m³) Density(kg/m³) | 热变形温度(℃) HDT(℃) | 压缩强度(MPa) Compressive Strength(MPa) | 拉伸强度(MPa) Tensile Strength(MPa) | 弹性模量(MPa) Elastic Modulus(MPa) |
|---|---|---|---|---|---|
| 51HT-FC | 52 | 213 | 0.8 | 0.8 | 72 |
| 71HT-FC | 75 | 217 | 1.7 | 2.2 | 101 |
| 110HT-FC | 110 | 222 | 3.7 | 4.3 | 180 |
| 200HT-CC | 200 | 225 | 9.3 | 6.9 | 358 |
功能性系列 Functional Series
| 类型 Type | 规格 Spec | 密度(kg/m³) Density(kg/m³) | 特殊功能 Special Function |
|---|---|---|---|
| WP通波 WP Wave-transparent | 31WP / 51WP / 71WP | 32 / 52 / 75 | 电磁波透过性 Electromagnetic wave transparency |
| WA吸波 WA Wave-absorbing | 71WA / 150WA | 75 / 150 | 电磁波吸收性 Electromagnetic wave absorption |
| FR阻燃 FR Flame-retardant | 51FR / 71FR / 110FR | 52 / 75 / 110 | 阻燃性能 Flame retardant properties |
| IR抗冲 IR Impact-resistant | 71IR / 110IR | 75 / 110 | 抗冲击性能 Impact resistance |
产品特性 Product Features
100%闭孔率 100% Closed Cell
100%闭孔的刚性聚甲基丙烯酰亚胺泡沫，不含里昂和卤素。 100% closed-cell rigid polymethacrylimide foam, free of freon and halogen.
高比强度 High Specific Strength
在同等泡沫密度中，具有最高的比强度和比刚度。 Highest specific strength and stiffness among foams of the same density.
易加工性 Easy Processing
泡孔致密均匀且各向同性，易于机械加工，不需要特殊工具。 Dense, uniform and isotropic foam cells, easy to machine without special tools.
高温稳定 High Temperature Stability
耐高低温性能(-220-180℃)，具有很好的耐压缩变性。 High and low temperature resistance (-220-180℃) with excellent compression set resistance.
易粘接性 Easy Bonding
适用于各种热固和热塑性树脂体系，也适用于多种成型工艺。 Compatible with various thermoset and thermoplastic resin systems and molding processes.
耐疲劳性 Fatigue Resistance
具有优异的耐疲劳性能，是制作轻质高强运动器材的理想芯材。 Excellent fatigue resistance, ideal core material for lightweight high-strength sports equipment.
应用领域 Applications
高性能PMI泡沫广泛应用于航空航天、运动器材、汽车工业、风电、医疗等多个高端制造领域。 High-performance PMI foam is widely used in aerospace, sports equipment, automotive, wind power, medical and other high-end manufacturing fields.
航空航天 Aerospace
用于卫星结构、飞机部件等关键结构的轻量化芯材。 Used as lightweight core material for satellite structures, aircraft components and other critical structures.
运动器材 Sports Equipment
制造自行车车架、高尔夫球杆等高端体育器材。 Manufacturing bicycle frames, golf clubs and other high-end sports equipment.
汽车工业 Automotive
用于车身部件的轻量化设计，提升燃油效率。 Used in lightweight design of vehicle body components to improve fuel efficiency.
风电叶片 Wind Turbine Blades
作为风电叶片芯材，提供优异的结构强度和耐疲劳性。 As core material for wind turbine blades, providing excellent structural strength and fatigue resistance.
医疗设备 Medical Equipment
用于部分医疗设备部件，提供轻质高强性能。 Used in medical equipment components, providing lightweight and high-strength performance.
隐身部件 Stealth Components
功能性系列用于雷达隐身部件，具有特殊的电磁特性。 Functional series used in radar stealth components with special electromagnetic properties.
质量保证 Quality Assurance
国际标准 International Standards
按照ASTM D3574、ISO 8307、GB/T系列等国际标准进行测试验证。 Tested and verified according to international standards such as ASTM D3574, ISO 8307, GB/T series.
精密控制 Precision Control
严格控制密度分布、泡孔结构等关键参数，确保产品性能一致性。 Strictly controlling key parameters such as density distribution and cell structure to ensure product performance consistency.
