产品概述 Product Overview
骨架增强类织物包括玻璃纤维织物和碳纤维织物两大类，具有优异的力学性能，在多个领域可实现材料减重与性能提升，广泛应用于风能、海洋业、汽车业、航空业等高端制造领域。 Skeleton reinforcement fabrics include glass fiber fabrics and carbon fiber fabrics, with excellent mechanical properties for material weight reduction and performance improvement, widely used in wind energy, marine, automotive, aviation and other high-end manufacturing fields.

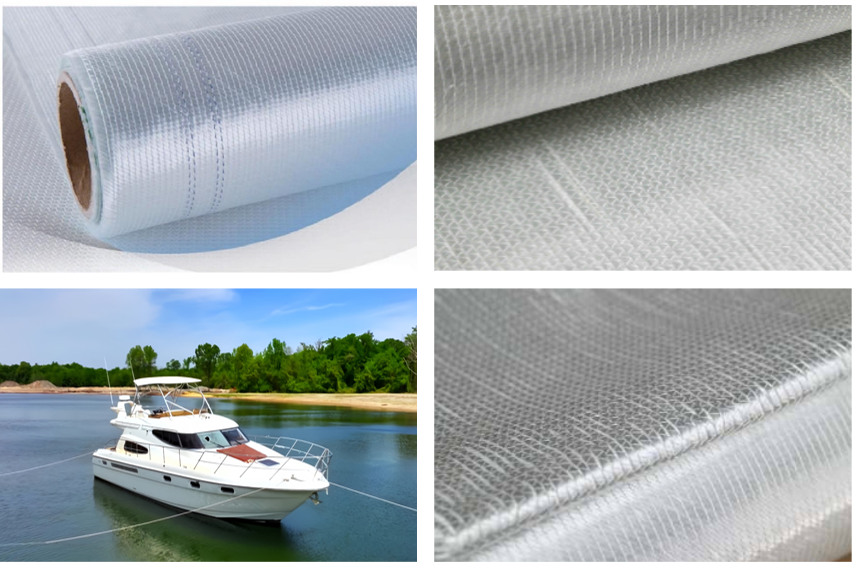

玻璃纤维织物 Glass Fiber Fabrics
包含多轴向织物和单向、双轴向织物，提供优异的机械性能和加工性能。 Including multiaxial fabrics and unidirectional, biaxial fabrics, providing excellent mechanical and processing properties.

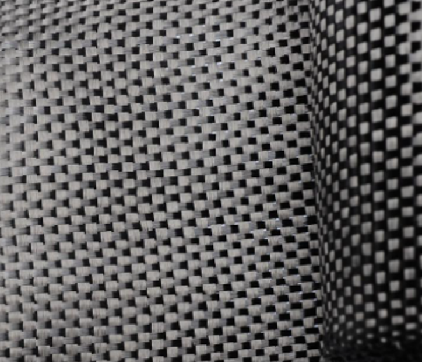

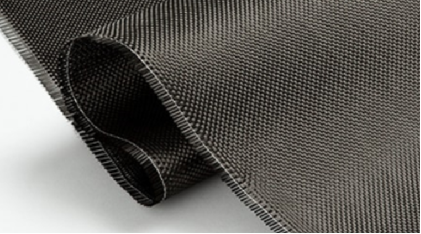

碳纤维织物 Carbon Fiber Fabrics
具有轻质高强的特性，力学性能优异，可替代传统金属材料实现减重与性能提升。 Featuring lightweight and high strength characteristics with excellent mechanical properties, can replace traditional metal materials for weight reduction and performance improvement.
产品展示 Product Gallery
玻璃纤维织物规格 Glass Fiber Fabric Specifications
多轴向织物 Multiaxial Fabrics
| 产品规格 Product Spec | 总克重(gsm) Total Weight(gsm) | 0°克重(gsm) 0° Weight(gsm) | 45°克重(gsm) 45° Weight(gsm) | 90°克重(gsm) 90° Weight(gsm) | -45°克重(gsm) -45° Weight(gsm) | 短切层克重CSM(gsm) CSM Weight(gsm) |
|---|---|---|---|---|---|---|
| EBX800(45/-45) | 810±5% | 2 | 400 | 2 | 400 | 1 |
| EBX1200(45/-45) | 1212±5% | 2 | 600 | 2 | 600 | 1 |
| EBX600(45/-45)/M225 | 832±7% | 2 | 300 | 2 | 300 | 225 |
| EQX1200(0/45/90/-45)//M300 | 1500±7% | 283 | 300.6 | 307 | 300.6 | 300 |
| EQX1200 | 1200±5% | 283 | 300.6 | 307 | 300.6 | 1 |
单向、双轴向织物 Unidirectional & Biaxial Fabrics
| 产品规格 Product Spec | 总克重(gsm) Total Weight(gsm) | 0°克重(gsm) 0° Weight(gsm) | 90°克重(gsm) 90° Weight(gsm) | 短切层克重CSM(gsm) CSM Weight(gsm) | 夹芯层克重(gsm) Core Weight(gsm) |
|---|---|---|---|---|---|
| ELT800 | 821±5% | 413 | 396 | - | - |
| ELTX1566 | 1579±5% | 567 | 1000 | - | 1 |
| UD400(0) | 453±5% | 413 | 30 | - | - |
| ET430(90) | 430±5% | 1 | 425 | 1 | - |
| ELT515/M200 | 725±7% | 413 | 100 | 200 | 1 |
碳纤维织物规格 Carbon Fiber Fabric Specifications
| 产品规格 Product Spec | 总克重(gsm) Total Weight(gsm) | 0°克重(gsm) 0° Weight(gsm) | +45°克重(gsm) +45° Weight(gsm) | 90°克重(gsm) 90° Weight(gsm) | -45°克重(gsm) -45° Weight(gsm) | 幅宽(mm) Width(mm) |
|---|---|---|---|---|---|---|
| C-EL200 | 200 | 200 | - | - | - | 1270±0.5 |
| C-EL300 | 300 | 300 | - | - | - | 1270±0.5 |
| C-EBX150 | 150 | - | 75 | - | 75 | 1270±0.5 |
| C-EBX200 | 200 | - | 100 | - | 100 | 1270±0.5 |
| C-EBX600 | 600 | - | 300 | - | 300 | 1270±0.5 |
| C-EL600 | 600 | 300 | - | 300 | - | 1270±0.5 |
| C-EL1000 | 1000 | 500 | - | 500 | - | 1270±0.5 |
| C-EL1600 | 1600 | 800 | - | 800 | - | 1270±0.5 |
产品特性 Product Features
轻质高强 Lightweight & High Strength
玻璃纤维单轴布和双轴布在各自方向上具有极高的强度和刚度，碳纤维更是具备轻质高强特性。 Glass fiber unidirectional and biaxial fabrics have extremely high strength and stiffness in their respective directions, while carbon fiber features lightweight and high strength characteristics.
多轴向设计 Multiaxial Design
多轴向织物在多个方向上均具有较强的力学性能，满足复杂应力环境的需求。 Multiaxial fabrics have strong mechanical properties in multiple directions, meeting the demands of complex stress environments.
工艺适应性 Process Adaptability
适用于模压、热压罐、RTM等各种成型工艺，加工便利性高。 Suitable for various molding processes such as molding, autoclave, RTM, with high processing convenience.
材料替代 Material Substitution
可有效替代传统金属材料，实现结构减重和性能提升的双重目标。 Can effectively replace traditional metal materials, achieving dual goals of structural weight reduction and performance improvement.
应用领域 Applications
骨架增强类织物广泛应用于多个高端制造领域，为各行业提供专业的增强解决方案。 Skeleton reinforcement fabrics are widely used in multiple high-end manufacturing fields, providing professional reinforcement solutions for various industries.
风能行业 Wind Energy
用于风电叶片的制造，提供优异的结构强度和耐疲劳性能。 Used in wind turbine blade manufacturing, providing excellent structural strength and fatigue resistance.
海洋业/造船业 Marine/Shipbuilding
应用于船体结构、甲板等部件，提供优异的耐海水腐蚀性能。 Applied to hull structures, decks and other components, providing excellent seawater corrosion resistance.
汽车业 Automotive
用于制造汽车车身、底盘等结构件，实现汽车轻量化。 Used in manufacturing automotive body, chassis and other structural components for vehicle lightweighting.
航空业 Aviation
应用于飞机机翼、机身等关键结构件，满足严苛的航空标准。 Applied to aircraft wings, fuselage and other critical structural components, meeting stringent aviation standards.
国防事业 Defense
用于军用装备的结构增强，提供优异的防护和性能表现。 Used for structural reinforcement of military equipment, providing excellent protection and performance.
休闲/娱乐产品 Recreation Products
制造高端体育器材、娱乐设施等，提升产品性能和使用体验。 Manufacturing high-end sports equipment, recreational facilities, etc., improving product performance and user experience.
质量保证 Quality Assurance
精密制造 Precision Manufacturing
严格控制纤维方向、克重分布等关键参数，确保产品规格的精确性和一致性。 Strictly controlling key parameters such as fiber orientation and weight distribution to ensure accuracy and consistency of product specifications.
标准认证 Standard Certification
产品符合国际相关标准，通过多项质量管理体系认证，品质值得信赖。 Products comply with relevant international standards and are certified by multiple quality management systems, with trustworthy quality.
